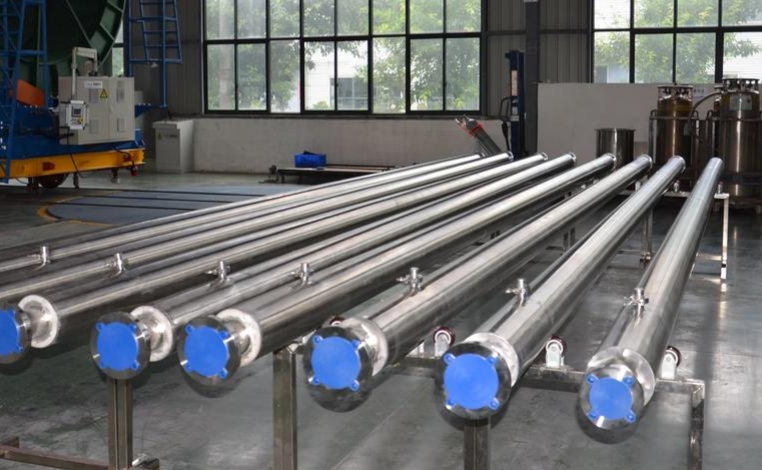

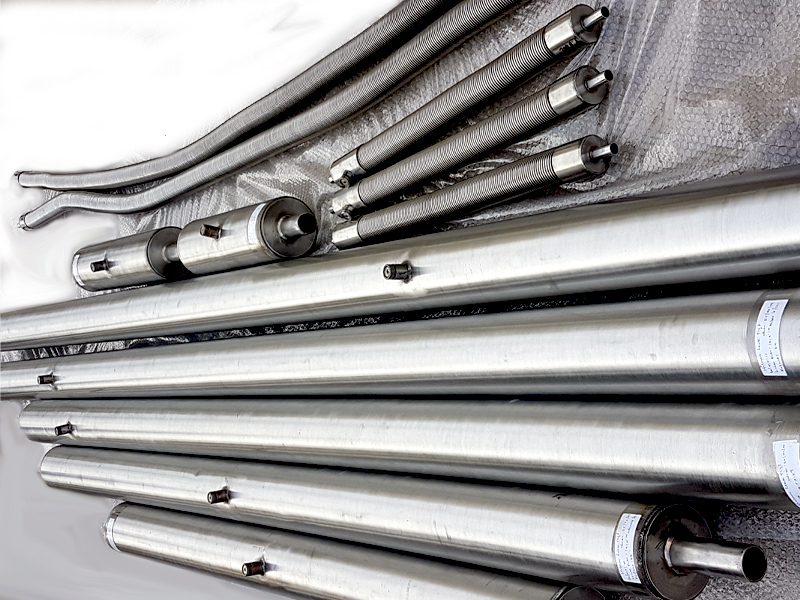

SUS304 Stainless Steel LNG Transfer Cryogenic Vacuum Insulated Pipeline

Cryogenic Vacuum Insulated Pipeline Features

Double Walled Construction for lowest heat inleak

Factory Sealed Vacuum Sections for vacuum integrity to 20 years

Prefabricated for easy shipping and installation

Minimal Cryogenic Liquid Loss for maximum liquid preservation

Series 304 Stainless Steel Fabrication for maximum service life

Bayonet Design Options for easy installation

Standard Pipe Hangers for low install/maintenance cost

Helium Mass Spectrometer Leak-Testing for vacuum integrity

Modular Construction for ease of expansion/modification

Internal Liquid Traps prevents boil-off

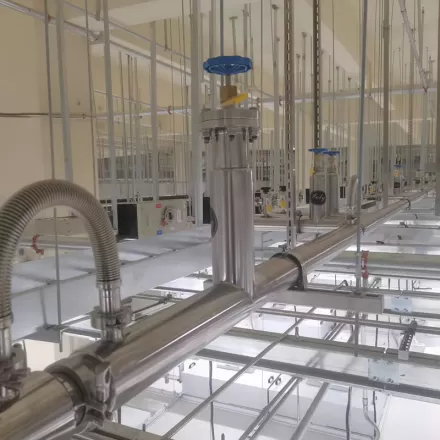

Vacuum Jacketed Valves for branch and equipment isolation

Flexible piping options for thermal contractions/simple installation

What is Vacuum Jacketed Piping?

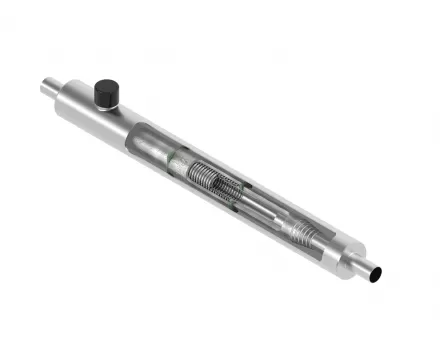

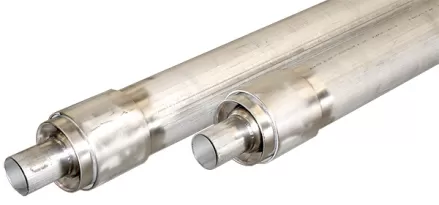

A vacuum jacketed piping system consists of an inner process pipe surrounded by an outer jacket, with the annular space

evacuated to create a high level of thermal insulation. In many designs, additional insulation materials are installed within the vacuum space to further reduce heat transfer.

By eliminating convection and significantly reducing conductive and radiative heat transfer, vacuum jacketed piping provides superior thermal performance compared to conventional insulation methods in cryogenic service.

Vacuum jacketed piping is used to thermally isolate cryogenic and low-temperature fluids by minimizing heat transfer from

the surrounding environment. Unlike heated jacketed piping systems, vacuum jacketed piping relies on insulation under

vacuum rather than active heat input. These systems are commonly applied in cryogenic service where maintaining low

temperatures and minimizing boil-off are critical to process performance and safety.

Precise Thermal works with specialized fabrication partners capable of delivering vacuum jacketed piping systems and

components for a wide range of cryogenic fluids and service conditions, with designs tailored to application-specific thermal and mechanical requirements.

Heated Jacketed Piping Systems

In addition to vacuum jacketed piping for cryogenic service, Precise Thermal also supports jacketed piping systems used for

process heating, viscosity control, and freeze protection. These systems circulate a heating medium—such as steam, thermal

fluid, or glycol—around the process pipe to maintain required operating temperatures.

Cryogenic Vacuum Pipeline Description

Cryogenic Fluid Applications

Durable, reliable construction

Easy to clean and sterilize

Improve thermal energy efficiency

Low profile, space-saving designs

Reduce boil-off and conserve materials

Reduce condensation and risk of mold

Reduce risk of corrosion-under-insulation (CUI)

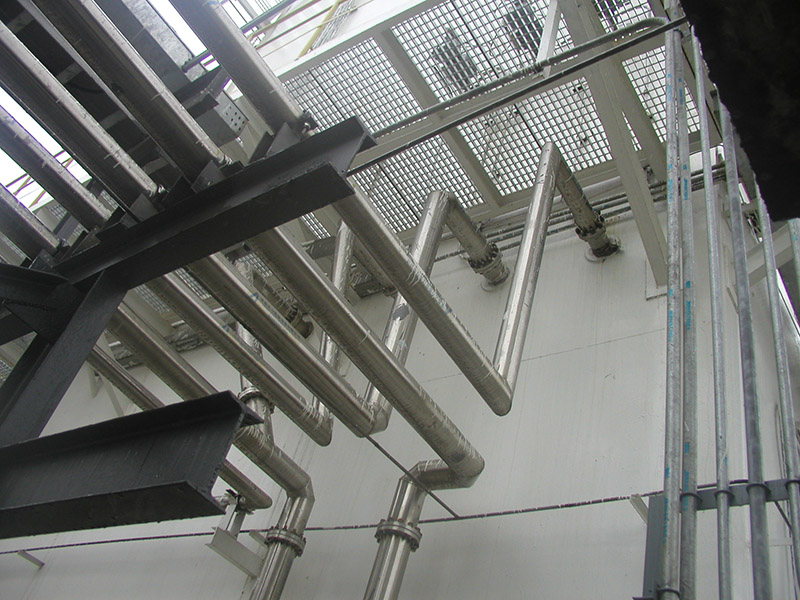

Cryogenic Insulated Pipeline
