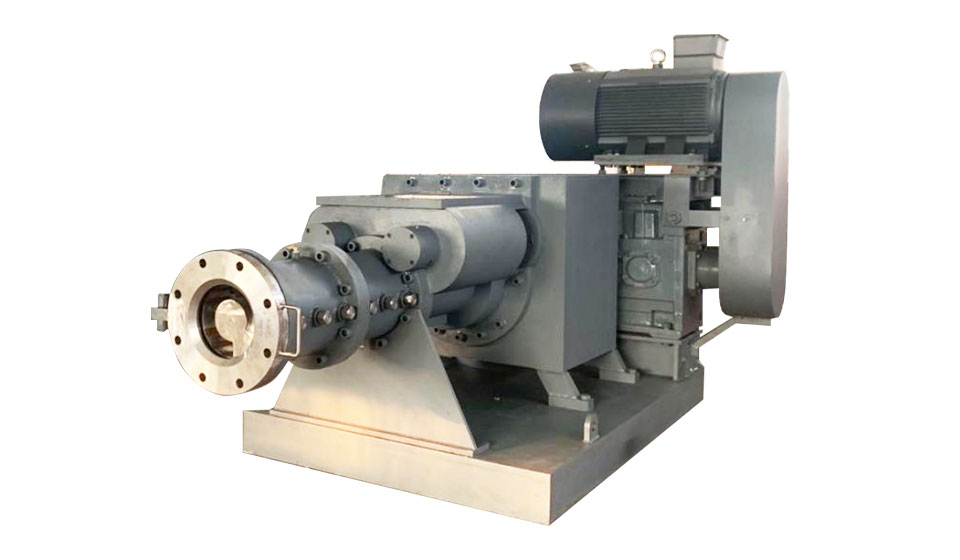

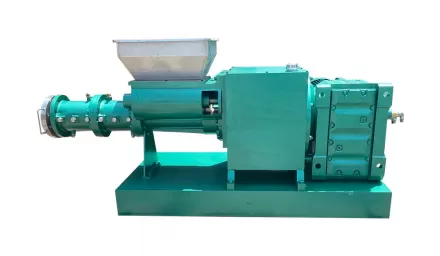

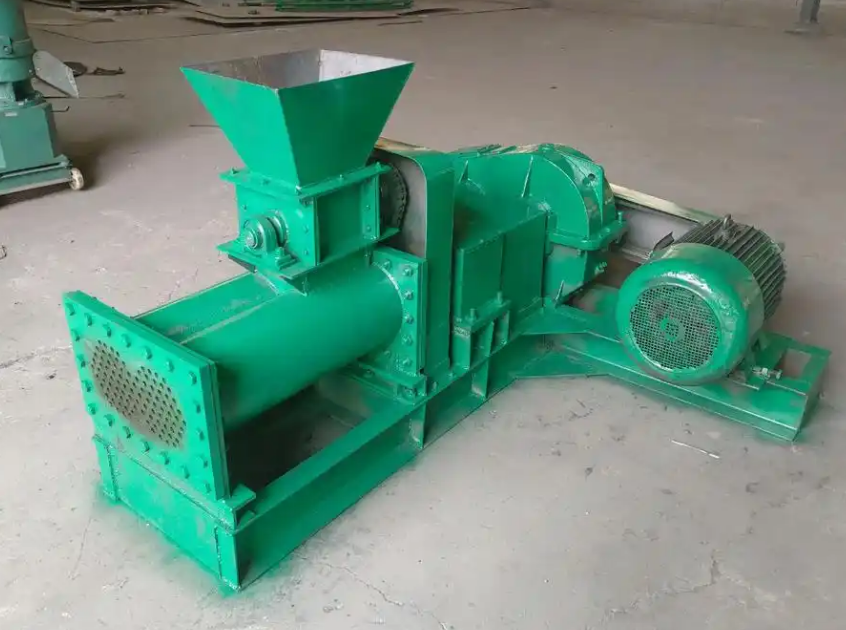

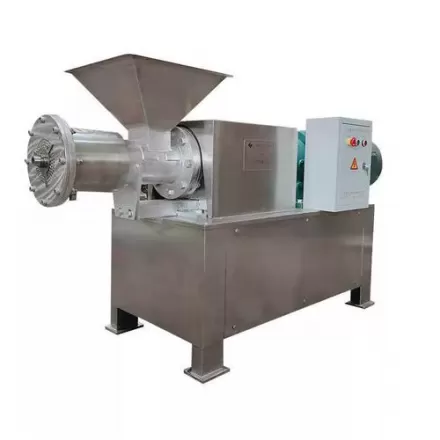

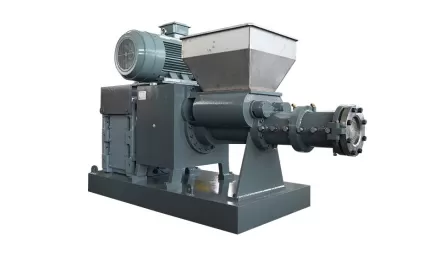

DJ-50 Single-screw extruder is a regular pellet molecular sieve processing equipment, mainly used to manufacture various extruded 3A;4A;5A 13X, etc. It adopts modular design to meet different process requirements, capacity, screw speed, torque and pressure, etc. Parameters can also be adjusted as needed.
The equipment is mainly composed of feeding device, screw extrusion cavity and control system, and driving power. After the raw materials are mixed evenly, they are transported to the feeder of the main machine, and the material is transported to the extrusion cavity through the feeder. The screw shears and squeezes the material under high temperature and high pressure conditions, causing physical and chemical changes to occur, thereby realizing puffing. .
The single-screw extruder has the advantages of simple operation, high degree of automation, low energy consumption and large output, and has become an important equipment for many Molecular sieve production enterprises.
Product Description
Extruder Model No.DJ-50
DJ-50 Single-screw extruder is a regular pellet molecular sieve processing equipment, mainly used to manufacture various extruded 3A;4A;5A 13X, etc. It adopts modular design to meet different process requirements, capacity, screw speed, torque and pressure, etc. Parameters can also be adjusted as needed.
The equipment is mainly composed of feeding device, screw extrusion cavity and control system, and driving power. After the raw materials are mixed evenly, they are transported to the feeder of the main machine, and the material is transported to the extrusion cavity through the feeder. The screw shears and squeezes the material under high temperature and high pressure conditions, causing physical and chemical changes to occur, thereby realizing puffing. .
The single-screw extruder has the advantages of simple operation, high degree of automation, low energy consumption and large output, and has become an important equipment for many Molecular sieve production enterprises.
Specification
Item | Name | Spec |
1 | Parts in contact with materials | 304 |
2 | Power | 11kw |
3 | Speed Control | Frequency Control |
4 | Screw diameter | Φ100 |
5 | Minimum extrusion diameter | ≥0.85 |
6 | Weight | 800kg |
7 | Cooling method | extruder |
8 | Productivity kg/h | 100 |
Characteristics
Strong Adaptability:
1. Suitable for Molecular Sieve Pellet
2. Machine parts modularization
3. Easy operation
4. Maintenance is more convenience.
High Efficiency: The production speed of single screw extruder machine is 100kg/hr(Size:1.6mm Size:3.2mm),
convenient Operation
1. Humanized operation interface
2. Concise straightforward
3. In control of production status at any time
4. Supports customization, preset.
Application: It is applicable for granule product production such as molsieve, active mineral beads, montmorillonite etc.
Packaging & Shipping
Package Type: Each Equipment per polybag,then into a Wooden Case in the end
Shipping way: Please contact us for customized design and shipping fee
Our Services
Equipment Service Development
1. Your inquiry related to our equipment or prices will be replied in 24hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3. OEM & ODM, any your customized lightings we can help you to design and put into product;
4. Packaging: Wooden case in English Language,also can as per customer’s requirments;
5. Delivery time: 45-60 days, which depend on quantity ordered.
Product Inquire
Company Information
FACTORY DIRECT:
Competitive price
Good communication
Easily custom design
1.Our factory is over 30,000 square meter with more than 100 workers, no worry about the lead time.
2. We have our own forwarder for shipping and sure will delivery equipment to you on time
3.our factory with tech-department, we have a ability of development and repair service.
4.We have the full of experience of exhibition like Canton Fair and Shenzhen High-tech Fair.
5.We offer the best kind of service to you for our full set of experience of exported products to South East of Asia & Europe & North America ect.
