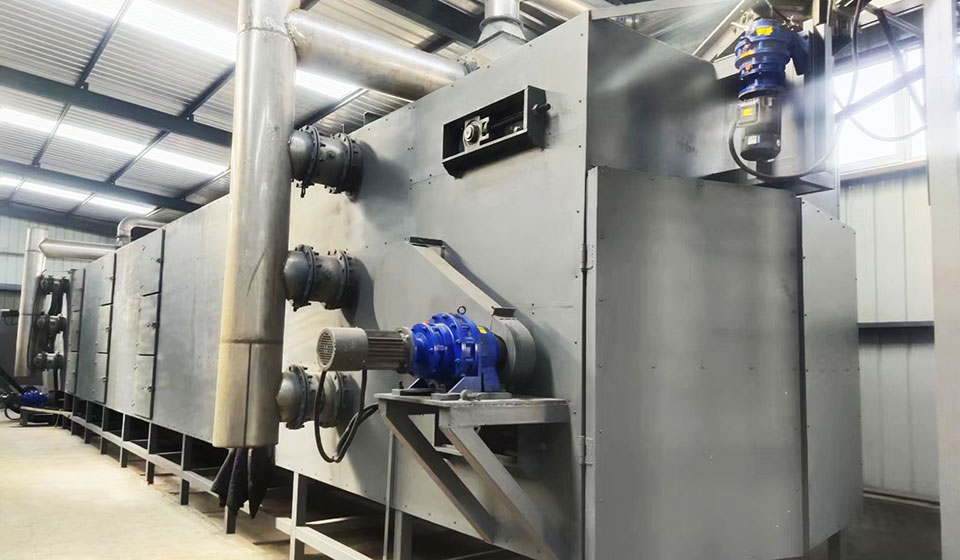

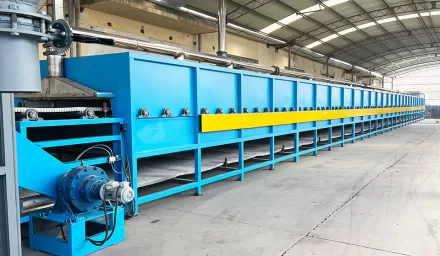

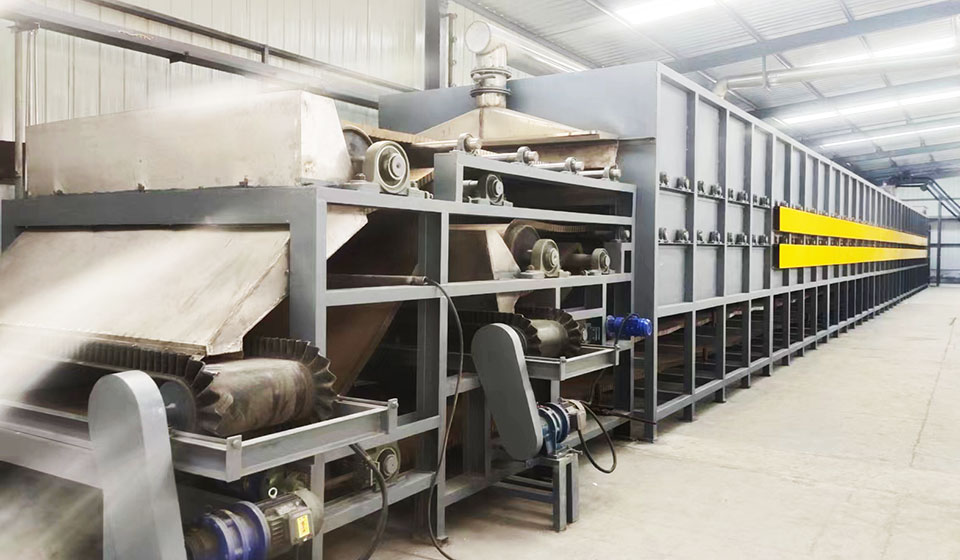

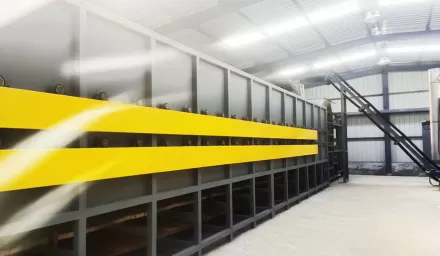

Mesh belt kilns are continuous kilns, with a metal mesh belt as the drive mechanism. The metal mesh belt is supported by rollers and is mainly used for drying and roasting catalyst powders or low-strength granular materials. Feeding is achieved through hoppers or stainless steel trays, ensuring uninterrupted feeding and improving drying or roasting efficiency.
Product Description
Description
Mesh belt kilns are continuous kilns, with a metal mesh belt as the drive mechanism. The metal mesh belt is supported by rollers and is mainly used for drying and roasting catalyst powders or low-strength granular materials. Feeding is achieved through hoppers or stainless steel trays, ensuring uninterrupted feeding and improving drying or roasting efficiency.
Applications
Widely used in the drying, calcination, and activation processes of industrial catalysts, molecular sieves, and activated carbon.
Structural Features
Mesh belt kilns are continuous kilns, with a metal mesh belt as the transmission method. The metal mesh belt is supported by rollers and is mainly used for drying and roasting catalyst powders or low-strength granular materials. Feeding is achieved through hoppers or stainless steel trays, ensuring uninterrupted feeding and improving drying or roasting efficiency. Based on the heating method, they can be divided into flame-heated and electrically heated mesh belt kilns. Different stainless steel mesh belt materials are selected according to the kiln temperature. Due to the limitations of the mesh belt material, the operating temperature of mesh belt kilns is below 1000℃.
Structural Features
Mesh belt kilns are continuous kilns, with a metal mesh belt as the transmission method. The metal mesh belt is supported by rollers and is mainly used for drying and roasting catalyst powders or low-strength granular materials. Feeding is achieved through hoppers or stainless steel trays, ensuring uninterrupted feeding and improving drying or roasting efficiency. Based on the heating method, they can be divided into flame-heated and electrically heated mesh belt kilns. Different stainless steel mesh belt materials are selected according to the kiln temperature. Due to the limitations of the mesh belt material, the operating temperature of mesh belt kilns is below 1000℃.
project | Specifications and performance parameters |
Kiln body length | 6~60m |
Mesh belt width | 0.3~2m |
Use upper temperature limit | 80-900℃ |
energy | Electric heating, gas |
Loading method | Feeding via hopper or stainless steel tray |
Adaptable materials | Catalysts, inorganic salt metal oxide powders, granules, etc. |
project | Specifications and performance parameters |
heating element | Alloy furnace wire, silicon carbide rod, gas burner |
Number of heating zones | Determined by temperature profile |
Temperature control method | PLC Or DCS |
Mesh belt speed | Adjustable |
Structural form | Single or multi-layer |
