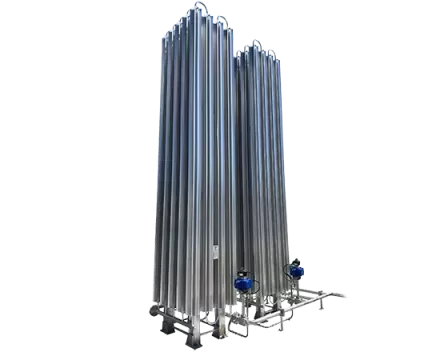

High-Efficiency Cryogenic Ambient Air Cryogenic Vaporizer for Vaporizers for Cryogenic Industrial Use

Working Medium: LOx LIN LAr LCO2 LNG, etc.

Capacity: 50-16000 NM3/H

Working Pressure：0-350 Bar

Working Limit: 8-12 Hours

Standard: ASME/GB

Type: Vertical

Inquire Now Next Product Add to basket

Product Description Packaging & Shipping Our Services Company Information FAQ

Product Description

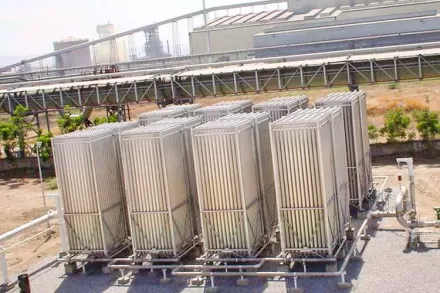

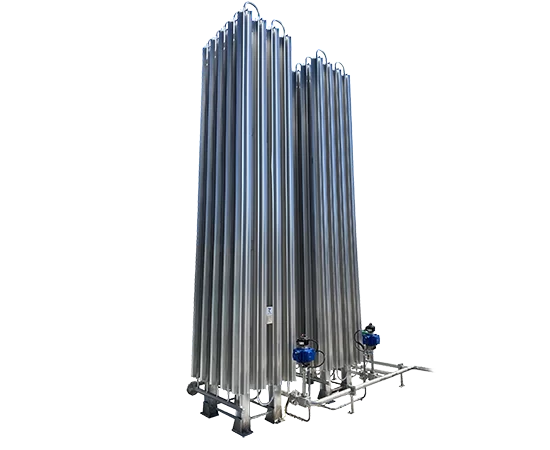

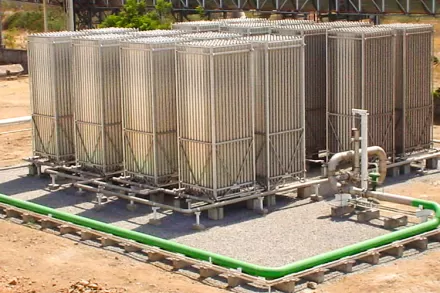

Ambient Air Vaporizer

Ambient Air Vaporizers use the ambient temperature to heat cryogenic liquids(LOx LIN LAr LCO2 LNG, etc.) in fin-shaped pipelines so the liquids are fully evaporated rapidly under the working pressure.

Technical Data

MODEL	Cryogenic Vaporizer QF Model
TYPES OF VAPORIZATION/RE-GASIFICATION	Ambient Air Natural Draft Cryogenic Vaporization
OPERATING FLUIDS	LOX, LIN, LAR, LHe, LNG, LH2, LCO2
CAPACITY OF EACH VAPORIZERS MODULE	10 to 5000 Nm3/Hour & Higher on request
BANK OF VAPORIZERS	Two or more vaporizers are systematically clubbed to operate in series or parallel for higher flow rates and duty cycles.
PRESSURE RANGE	1 bar(g) to 90 bar(g) as standard
VAPORIZER CONSTRUCTION	All aluminium or aluminium with SS lining
DESIGN CODES	ASME U stamp or CE marking offered on request
PRESSURE DROP OPTIONS	Apart from standard pressure drop, ultra-low pressure drop, All parallel units are available on request.
MULTIFOLD CONFIGURATION	Single pass all series, parallel series combination, all parallel manifolding
FRAME CONSTRUCTION	Aluminium alloy 6061 T6, SS304 (CS on request), SS3116, etc.
FIN MODULATION	4, 8 & 12 fins precisely placed in different heating zons for maximised modular vaporization

High-Efficiency Cryogenic Ambient Air Vaporizer for Industrial Use

Advantages of Ambient Cryogenic Vaporizer

1) Our team is highly qualified and experienced;

2) We focus on providing excellent quality products;

3) Our products is energy-saving and environment-friendly;

4) Our price is reasonable and competitive based on the same quality level;

5) Excellent after-sale service.

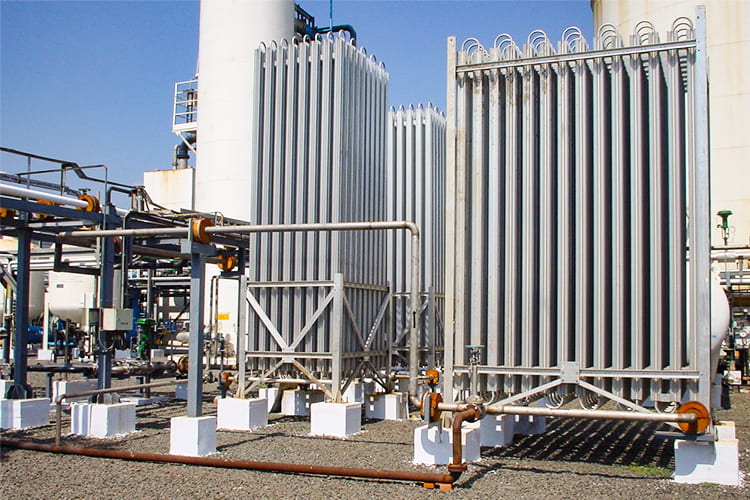

Ambient Air Vaporizers for Cryogenic Fluids

Ambient air vaporizers for cryogenic fluids provide an outgoing gas flow at a temperature close to ambient temperature, supplying the necessary heat to the incoming cryogenic fluid.

The heat is absorbed from the surrounding air, making the process completely economical.

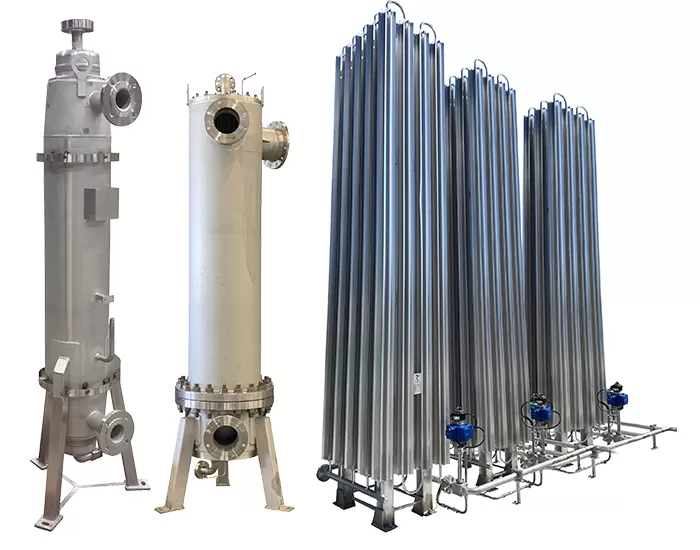

High-Efficiency Cryogenic Ambient Air Vaporizer for Industrial Use

VAX 42

Typically represents the high-pressure series installed downstream of a pumping system to vaporize cryogenic fluid at pressures up to 420 bar as standard.

VAX 55

Like the VAX 42, the VAX 55 is a high-pressure series installed downstream of a pumping system to vaporize cryogenic fluid at pressures up to 550 bar as standard.

VAA 06

Typically represents the low-pressure series used in gas distribution plants. Directly connected to a storage tank, these units provide a constant gas flow under pressure up to 60 bar.

Packaging & Shipping

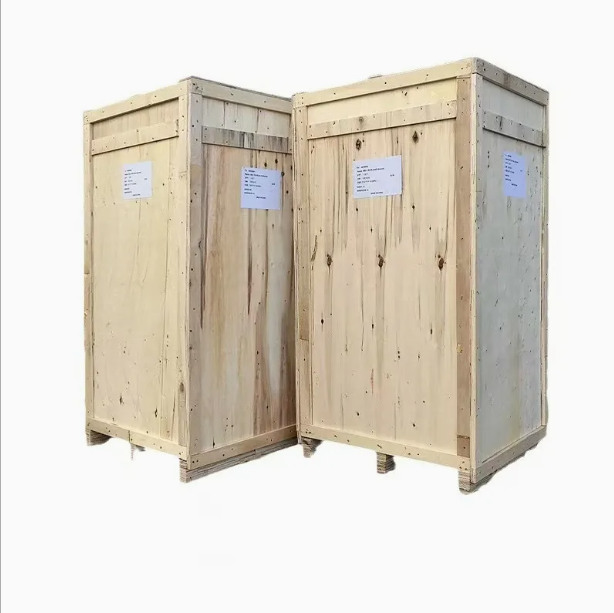

Package Type: Each Equipment per polybag,then into a Wooden Case in the end

Shipping way: Please contact us for customized design and shipping fee
