Refrigerated Air dryer
  • Low Dew Point Combined Desiccant Air Compressor Dryer Variable Frequency Compression Desiccant Air Dryer

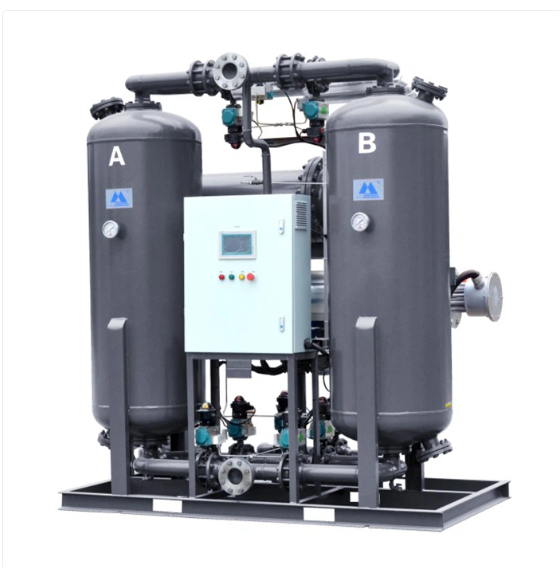

Low Dew Point Combined Desiccant Air Compressor Dryer Variable Frequency Compression Desiccant Air Dryer

Applicable Working Conditions

Max air inlet temperature: 45℃

Working pressure range: 0.5-1.0Mpa

Pressure dew point-20 ℃ ~ -40 ℃

Pressure loss≤ 3% of design working pressure

Oil content of inlet air: ≤0.1PPm

Cooling water inlet temperature: ≤32℃

Control mode: PLC control

Power supply: AC 380v/220v/50hz

Cycle time: T=8(h)









Product Description

Compression Desiccant Air Dryer Working Principle


A blower is used to extract ambient air, and after heating, the desiccant of the adsorption tower is regenerated, which avoids the air consumption loss of the micro-heat regenerative adsorption dryer. It has no air consumption, which is especially suitable for occasions requiring small regeneration air consumption, energy is saved in a greater extent.


Applicable Working Conditions

Max air inlet temperature: 45℃

Working pressure range: 0.5-1.0Mpa

Pressure dew point: -20 ℃ ~ -40 ℃

Pressure loss: ≤ 3% of design working pressure

Oil content of inlet air: ≤0.1PPm

Cooling water inlet temperature: ≤32℃

Control mode: PLC control

Power supply: AC 380v/220v/50hz

Cycle time: T=8(h)
