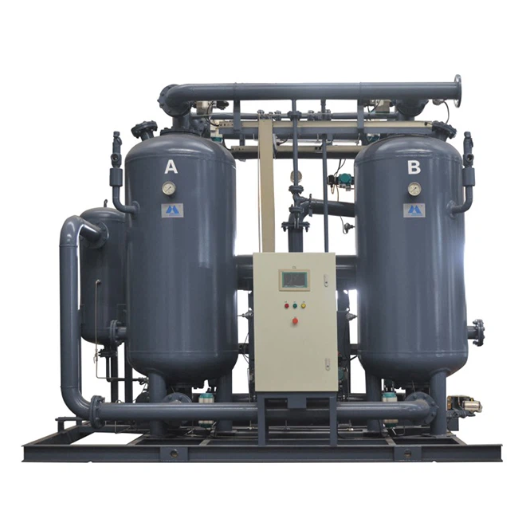

Low Dew Point Combined Desiccant Air Compressor Dryer Variable Frequency Refrigerated Air Dryer

Air Compressor Dryer

Applicable Working Conditions

Max air inlet temperature: 100℃

Working pressure range: 0.5-1.0Mpa

Pressure dew point： -20℃~-40℃

Pressure loss： ≤5% of design working pressure

Power supply: AC 220V/50HZ (PB series)

AC 380V/220V/50HZ (PF series)

Cycle: T=6-8 (h) (the cycle of 100m 3 and below PB series is 6h)

Cooling water inlet temperature : ≤32℃

Air inlet oil content: ≤0.1PPm

Control mode: PLC controller

Working cycle: T=8(h)

Working Principle

Heat of Compression Desiccant Air Dryer make full set of the heat generated by the compressor in the compressed gas to regenerate the adsorbent. For ordinary suction dryers, this part of high-temperature heat source needs to be cooled down before use, so this part of heat is wasted in vain,and the compression heat series dryer makes full use of this part of heat to regenerate adsorbent, which is not only economical the electric heater power consumption required by the micro heat drying machine series is reduced, and the gas consumption at this stage is eliminated. Therefore, this product is a good energy-saving product.
